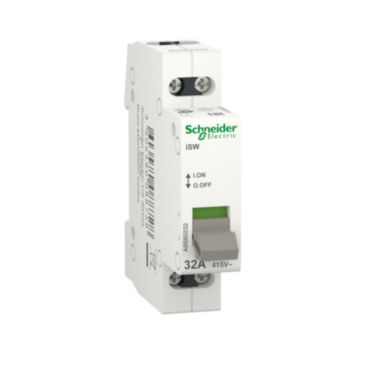

Acti 9 iSW & SW-A9S60232

switch Acti9 iSW – 2 poles – 32 A – 415V
Product Specifications
Part Number: A9S60232
Base Unit of Measurement: PCE
Length: 7.55 cm
Gross Weight: 65 g
ETIM-6.0: EC001545

Product Description

This Acti 9 iSW is a modular and reliable switch disconnector. it is a 2P, rated current is 32A, and operating voltage is 415VAC. Electrical endurance goes up to 30000 cycles, and Mechanical endurance goes up to 300000 cycles. The operating temperature is -20°C to +50°C. The storage temperature is -40°C to +70°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 77mm x (D) 70mm. This switch disconnector is used for control. This product is compliant with EN/IEC 60669-2-4.
