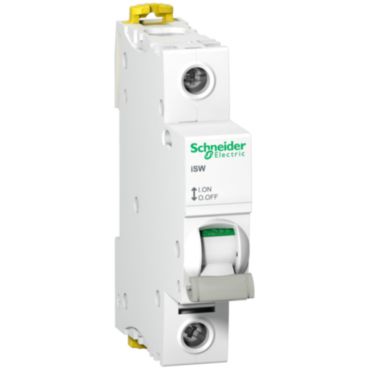

Acti 9 iSW & SW-A9S65140

switch disconnector iSW – 1P – 40 A – 240 V
Product Specifications
Part Number: A9S65140
Base Unit of Measurement: PCE
Length: 9.4 cm
Gross Weight: 85 g
ETIM-6.0: EC001545

Product Description

This Acti 9 iSW is a modular and reliable switch disconnector. it is a 1P, rated current is 40A, and operating voltage is 240VAC. Electrical endurance goes up to 15000 cycles, and Mechanical endurance goes up to 20000 cycles. The operating temperature is -25°C to +60°C. The storage temperature is -40°C to +85°C. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. The width in 9mm pitches is 2. The dimensions are (W) 18mm x (H) 85mm x (D) 73mm. This switch disconnector is used for control and isolation. This product is compliant with EN/IEC 60947-3.
