Compact NSX <630-LV431780

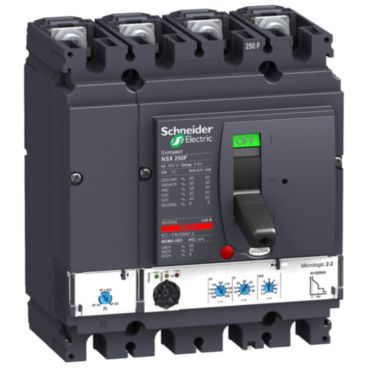

circuit breaker Compact NSX250F – Micrologic 2.2 – 250 A – 4 poles 4d
Product Specifications
Part Number: LV431780
Base Unit of Measurement: PCE
Length: 19.3 cm
Gross Weight: 2.609 kg
ETIM-6.0: EC000228
Product Description

This Compact NSX250F is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic Micrologic 2.2 trip unit, with 250A rating. Micrologic 2.2 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX250F is part of Schneider Electric EcoStruxure Power architecture.
