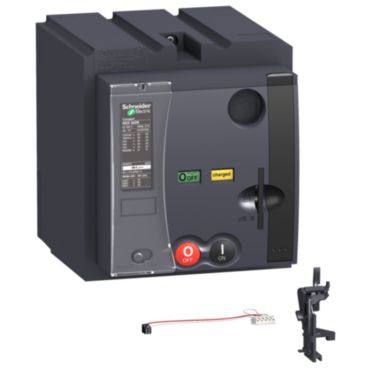

Compact NSX <630-LV432652

communicating motor mechanism – MT400/630 – SDE adaptor – 220..240 V 50/60Hz
Product Specifications
Part Number: LV432652
Base Unit of Measurement: PCE
Length: 20 cm
Gross Weight: 3.158 kg
ETIM-6.0: EC001030


Product Description

This is a communicating motor mechanism for Compact NSX 400/630 and PowerPact Multistandard L frame devices that allows automatic device spring-charging. It helps the circuit breaker to feature a high mechanical endurance as well as easy and sure opening or closing operations. This communicating motor mechanism can receive external opening and closing orders. It provides a double insulation of the front face and all indications remain visible and accessible. The control voltage of this communicating motor mechanism module is 220VAC to 240VAC 50/60Hz. The consumption is less than 500VA. Padlocking of the device remains possible.
