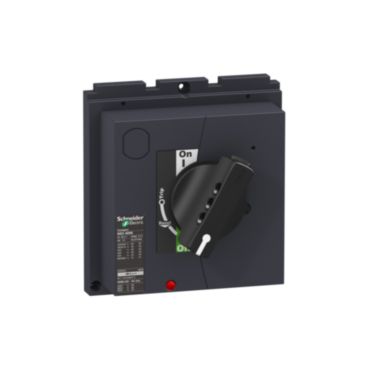

Compact NSX <630-LV432597

Direct rotary handle – padlockable – black
Product Specifications
Part Number: LV432597
Base Unit of Measurement: PCE
Length: 15.4 cm
Gross Weight: 0.492 kg
ETIM-6.0: EC000229

Product Description

It is a direct rotary handle for Compact NSX 400/630, PowerPact Multistandard L frames and EasyPact CVS 400/630 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.
