Compact NSX <630-LV433869

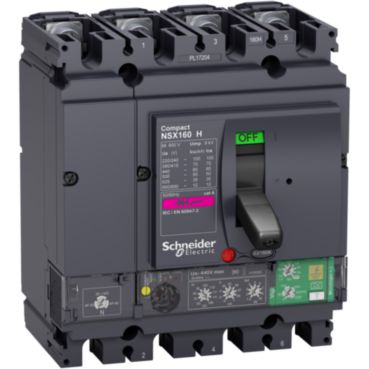

circuit breaker Compact NSX160H, 70 kA at 415 VAC, Micrologic 4.2 Vigi trip unit 160 A, 4 poles 4d
Product Specifications
Part Number: LV433869
Base Unit of Measurement: PCE
Length: 140 mm
Gross Weight: 3.1 kg
ETIM-6.0: EC000228


Product Description

This Compact NSX160H is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 160A rating electronic Micrologic 4.2 Vigi trip unit, with an integrated adjustable earth-leakage protection. Micrologic 4.2 Vigi provides also adjustable long time and short time protections, and a fixed instantaneous protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX160H is part of Schneider Electric EcoStruxure Power architecture.
