Schneider Electric Compact NSX <630-LV431563

spreader set – 45 mm pitch – flat connection – 3 poles
Product Specifications
Part Number: LV431563
Base Unit of Measurement: PCE
Length: 11.5 cm
Gross Weight: 214 g
ETIM-6.0: EC002019


Product Description

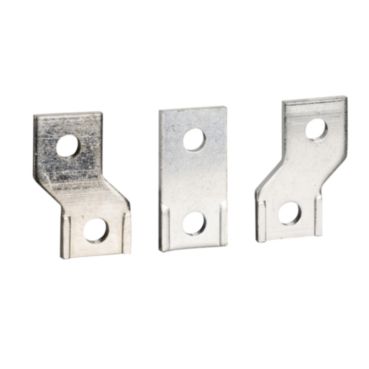

These accessories are spreaders for 3 poles Compact NSX 100/160/250 and EasyPact CVS 100/160/250. They are screwed to the circuit-breaker terminals to increase the pitch between poles from 35mm to 45mm. The rated current is up to 250 A. These spreaders are supplied with flexible interphase barriers for insulation reinforcement. They are sold by set of 3 parts.
