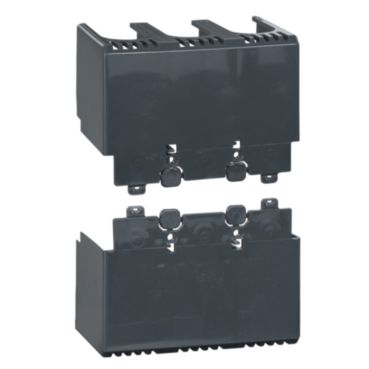

EasyPact EZC-EZETSHD3PN

terminal shield – 3 poles – for EZC250/EZCV250 – set of 2
Product Specifications
Part Number: EZETSHD3PN
Base Unit of Measurement: PCE
Length: 1.1 dm
Gross Weight: 0.124 kg
ETIM-6.0: EC002498


Product Description

This is an insulation accessory that protects against direct contact with power circuit for 3 poles EasyPact EZC 250. It is used with front cable or isolated busbar connections. It can be mounted upstream and downstream of the device. It allows to reach the clearance distance requested by IEC 60947-2 standard. The depth is 68mm. It provides IP20 degree of protection and IK07 mechanical impact protection.
