Interpact INS/INV-28910

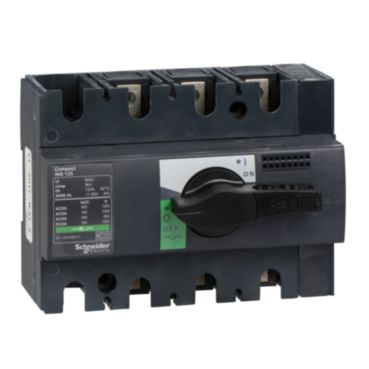

switch disconnector, Compact INS125 , 125 A, standard version with black rotary handle, 3 poles
Product Specifications
Part Number: 28910
Base Unit of Measurement: PCE
Length: 15.8 cm
Gross Weight: 1.026 kg
ETIM-6.0: EC000216


Product Description

This Compact INS125 is a 3 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 125A at 415VAC in categories AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS125 is a class II insulation level front-face device as per IEC 60664 standard.
