Interpact INS/INV-31341

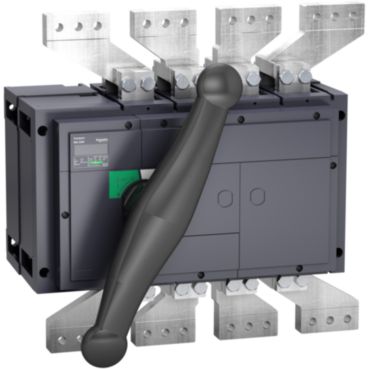

switch disconnector, Compact INS2500 , 2500 A, standard version with black rotary handle, 4 poles
Product Specifications
Part Number: 31341
Base Unit of Measurement: PCE
Length: 59.7 cm
Gross Weight: 62.2 kg
ETIM-6.0: EC000216


Product Description

This Compact INS2500 is a 4 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 4000A at 415VAC in categories AC21A, AC22A and AC23A. The rated voltage is 690VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS4000 is a class II insulation level front-face device as per IEC 60664 standard.
