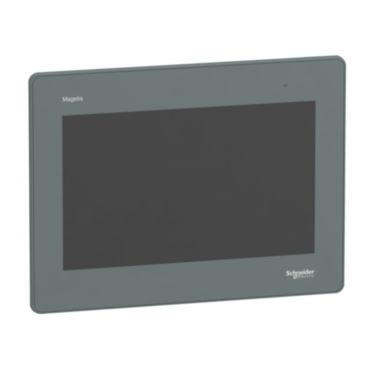

Magelis Easy GXU-HMIGXU5500

10.1 inch widescreen, Basic model, 1 serial port, embeddedRTC
Product Specifications
Part Number: HMIGXU5500
Base Unit of Measurement: PCE
Length: 275 mm
Gross Weight: 1055 g
ETIM-6.0: EC001412


Product Description

This product is part of the Magelis Easy GXU range, an offer of touchscreen panels. The advanced touchscreen panel features 10.1inch LCD screen and supports 800 x 480 pixels WVGA resolution. It is designed with an internal memory of 32MB for application, internal DDR of 128MB and internal backup memory of 128kB. It supports 65536 colours with backlight lifespan of 20000 hours. It is a touchscreen panel with a rated supply voltage of 24V DC. It is furnished with 9-way male D-Sub (DE-09) connector, RS422/RS485 COM1 serial link and USB type mini B integrated connections. It is an IP65 rated product. It is suitable for textile, packaging, HVAC and pumping applications. This product is certified by CE. Magelis Easy GXU, Essential touch screen panels, are entry-level products that are perfectly tailored to meet the specific requirements of emerging markets. In other words, they answer to the following challenges, fit for purpose at affordable price with no compromise on easiness, robustness, availability and services.
