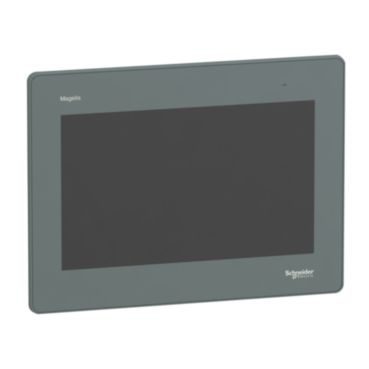

Magelis Easy GXU-HMIGXU5512

10.1 inch widescreen, Universal model, 2serial ports,1Ethernet port, embeddedRTC
Product Specifications
Part Number: HMIGXU5512
Base Unit of Measurement: PCE
Length: 275 mm
Gross Weight: 1060 g
ETIM-6.0: EC001412
Product Description

This product is part of the Magelis Easy GXU range, an offer of touchscreen panels. The advanced touchscreen panel features 10.1inch LCD screen and supports 800 x 480 pixels WVGA resolution. It is designed with an internal memory of 48MB for application, internal DDR of 128MB and internal backup memory of 128kB. It supports 65536 colours with backlight lifespan of 20000 hours. It is a touchscreen panel with a rated supply voltage of 24V DC. It is furnished with USB type mini B, COM1 serial link is 9-way male SUB-D, RS232C, COM2 serial link is 9-way male SUB-D, RS422/RS485, USB type A and Ethernet 10/100BASE-TX integrated connections. It is an IP65 rated product. It is suitable for textile, packaging, HVAC and pumping applications. This product is certified by CE. Magelis Easy GXU, Essential touch screen panels, are entry-level products that are perfectly tailored to meet the specific requirements of emerging markets. In other words, they answer to the following challenges, fit for purpose at affordable price with no compromise on easiness, robustness, availability and services.
