mini Pragma-MIP22104S

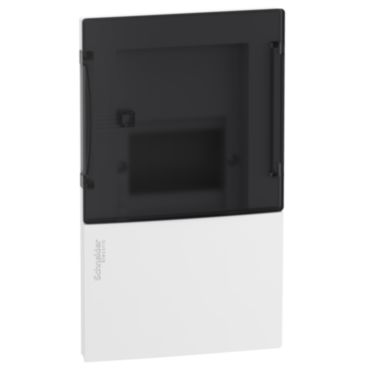

mini Pragma recessed enclosure – 1 x 4 modules – smoked door
Product Specifications
Part Number: MIP22104S
Base Unit of Measurement: PCE
Length: 25 cm
Gross Weight: 498 g
ETIM-6.0: EC000214


Product Description

This Resi9 MP enclosure is a flush mounted modular enclosure. This enclosure is composed of 1 row of 4 modules of 18mm. It can accomodate all types of modular switchgear. The IP degree of protection is IP40. It is provided with a smoked door. The colour of the front face is white (RAL 9003). It is intended for new or renovated installation in residential. It is equipped with 35 mm asymmetrical rail. It comes with 1 earth and 1 neutral terminal blocks with screwed connection terminals. The earth terminal block provides 4 outgoers (1x16mm² + 2x10mm² + 1x6mm²). The neutral one provides 4 outgoers (1x16mm² + 2x10mm² + 1x6mm²). The In rated current is up to 50A. It complies with IEC 529, IEC 60439-3, IEC 60670-24 standards. The total dimensions are (W) 150mm x (H) 252mm x (D) 98mm. The enclosure is made from technoplastic (back part and front face). The door is made from technoplastic. The resistance of the plastic to flames and to abnormal heat is 750°C for the door and the front face and 850°C for the back part. The IK degree of protection is IK07. The operating temperature is -25°C to 60°C.
