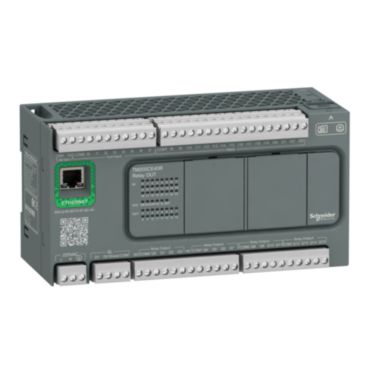

This product is part of the Modicon Easy M200 range, an offer of logic controllers for up to 168 I/O, 2 axis motion control. This logic controller provides 4 fast inputs, 4 high speed inputs, 16 regular inputs and 16 relay outputs, normally opened relay output. It is a Modicon logic controller with an input voltage of 24V DC, a discrete output voltage of 24V DC, 220V AC and an output current of 2A. Easy to maintain and update with its removable terminal block, micro SD memory card Integrated connections are mini B USB 2.0, serial link 1 with terminal block and RS485, serial link 2 with terminal block and RS232/RS485, ethernet Modbus TCP/IP with RJ45 and 10/100BASE-T, and serial link 2 with terminal block and RS485. It is a controller with an internal flash of 512byte and a micro SD card capacity of 32GB. It is an IP20 rated product. Its dimensions are 175mm (Width) x 70mm (Depth) x 90mm (Height). It weighs 0.512kg. The Modicon Easy M200 logic controllers have been specifically designed for textile, machine tool, packaging, HVAC, material handling, pumping, hoisting and machines for electronic assembly applications. This product is certified by CE, CSA, IACS E10, RCM and CULus. It meets EN/IEC 61010-2-201 and EN/IEC 61131-2 standards. It supports DIN rail mount. Modicon Easy M200 controllers are entry-level products perfectly suited to meet specific needs of emerging markets at an affordable price without compromise. Modicon Easy M200 logic controllers, the best performance/price ratio solutions for your small automation systems requiring flexibility and simple motion.
