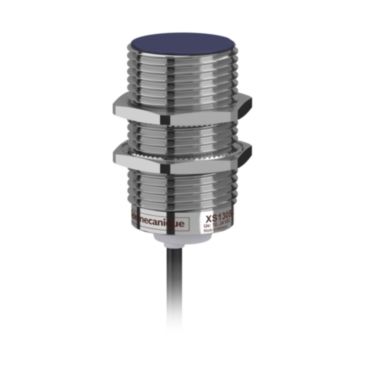

Osisense XS & XT-XS130BLPAL2

inductive sensor XS1 M30 – L57mm – brass – Sn10mm – 12..24VDC – cable 2m
Product Specifications
Part Number: XS130BLPAL2
Base Unit of Measurement: PCE
Length: 1.35 dm
Gross Weight: 0.198 kg
ETIM-6.0: EC002714


Product Description

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a cylindrical, flush mountable metal sensor. Diameter 30mm, threaded M30 x 1.5. It features a metal cylindrical boby and a 2m long cable. It has a sensing distance of 10mm. Three-wire, DC supply, 12V to 24V, NO function, PNP solid-state output.
