Osisense XS & XT-XS1L04NA310

inductive sensor XS1 Ø4 – L29mm – brass – Sn1mm – 5..24VDC – cable 2m
Product Specifications
Part Number: XS1L04NA310
Base Unit of Measurement: PCE
Length: 13 cm
Gross Weight: 45 g
ETIM-6.0: EC002714

Product Description

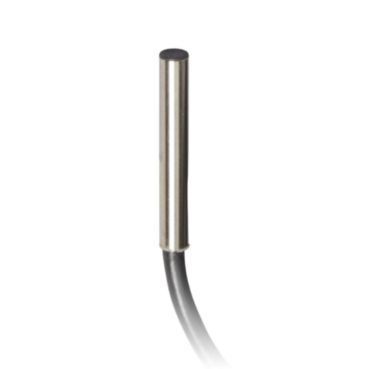

The XS range is an offer of inductive proximity sensors for the detection, without physical contact, of metal objects. The advantages of inductive detection are numerous, no physical contact with the object to be detected. Thus avoiding wear and enabling detection of fragile or freshly painted objects. High operating rates. Fast response. Excellent resistance to industrial environments (robust products, fully encapsulated in resin). This product is a miniature cylindrical, flush mountable sensor. Diameter 4mm, plain. It features a brass case and a 2m long cable. It has a sensing distance of 1mm. Three-wire, DC supply, 5V to 24V, NO function, NPN solid-state output .
