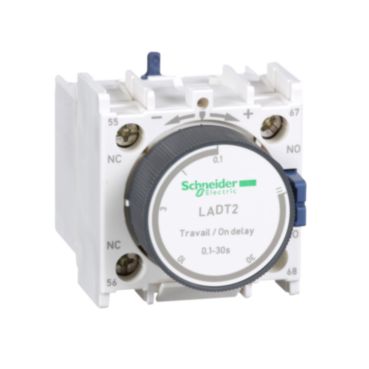

TeSys D-LADT2

TeSys D – time delay auxiliary contact block – 1 NO + 1 NC screw clamp terminals
Product Specifications
Part Number: LADT2
Base Unit of Measurement: PCE
Length: 6.5 cm
Gross Weight: 74 g
ETIM-6.0: EC002060


Product Description

TeSys D time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, On-delay setting range 1-30s, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).
