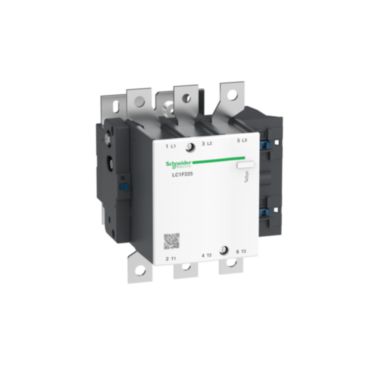

TeSys F-LC1F225

TeSys F contactor – 3P(3 NO) – AC-3 – <= 440 V 225 A – without coil
Product Specifications
Part Number: LC1F225
Base Unit of Measurement: PCE
Length: 23.2 cm
Gross Weight: 4.694 kg
ETIM-6.0: EC000066

Product Description

TeSys F contactor, 3 poles (3NO), 225A/690V AC-3, for motor applications up to 110kW@400V. Contactor with no coil to allow a later selection and installation (coil to be ordered separately), it provides bolt terminals for bars or cables with lugs. For high operating rates until 2400 cycles/hour and environments until 55°C, it procures high reliability and durability. It makes installation and maintenance easy thanks to a drawer for insertion of the selected coil and a large choice of add-on blocks and accessories (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
