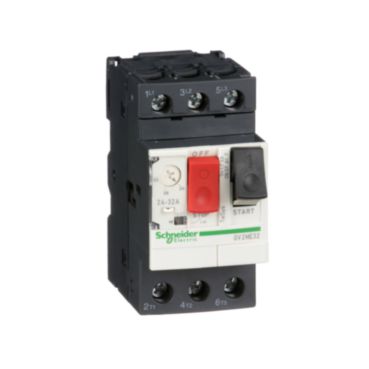

TeSys GV2-GV2ME32

TeSys GV2-Circuit breaker-thermal-magnetic – 24…32 A – screw clamp terminals
Product Specifications
Part Number: GV2ME32
Base Unit of Measurement: PCE
Length: 9.4 cm
Gross Weight: 281.67 g
ETIM-6.0: EC000074


Product Description

TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW@400V. It provides a thermal-magnetic protection with a thermal setting range 24-32A, magnetic tripping at 13xIn, high breaking capacity Icu 10kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
