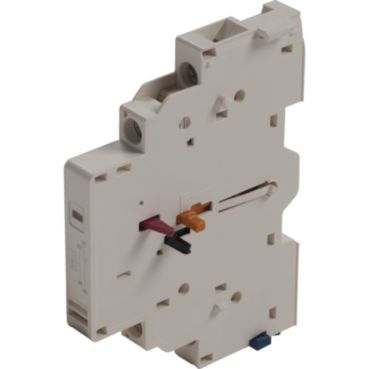

TeSys GV2-GVAD1001

TeSys GV2 & GV3 – auxiliary contact – 1 NC + 1 NO (fault)
Product Specifications
Part Number: GVAD1001
Base Unit of Measurement: PCE
Length: 7.1 cm
Gross Weight: 45.33 g
ETIM-6.0: EC000041


Product Description

TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1NO fault signaling contact + 1NC instantaneous auxiliary contact. Instantaneous auxiliary contact rated for operation up to 6A/690V AC and 6A/240V DC. Fault signaling contact rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
