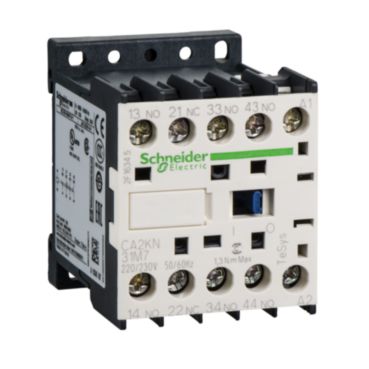

TeSys k, d, SK (auxiliary contactors)-CA2KN31M7

TeSys K control relay – 3 NO + 1 NC – <= 690 V – 220…230 V AC coil
Product Specifications
Part Number: CA2KN31M7
Base Unit of Measurement: PCE
Length: 0.62 dm
Gross Weight: 0.179 kg
ETIM-6.0: EC000196


Product Description

TeSys K control relay, 4 contacts (3NO + 1NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 220-230V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -25/+50°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium product (RoHS/REACh).
