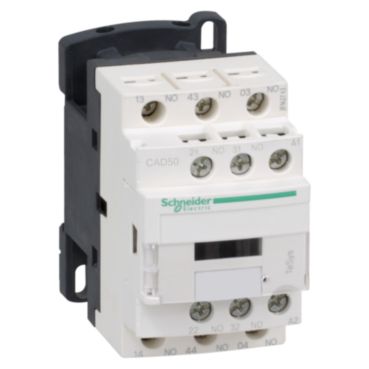

TeSys k, d, SK (auxiliary contactors)-CAD50M7

TeSys D control relay – 5 NO – <= 690 V – 220 V AC standard coil
Product Specifications
Part Number: CAD50M7
Base Unit of Measurement: PCE
Length: 11.3 cm
Gross Weight: 353.1 g
ETIM-6.0: EC000196


Product Description

TeSys D control relay, 5 contacts (5NO), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 220V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).
