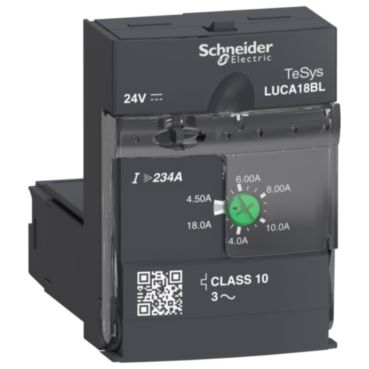

TeSys U-LUCA18BL

standard control unit LUCA – class 10 – 4.5…18 A – 24 V DC
Product Specifications
Part Number: LUCA18BL
Base Unit of Measurement: PCE
Length: 10.2 cm
Gross Weight: 120 g
ETIM-6.0: EC000617


Product Description

TeSys U standard control unit to be inserted in power bases LUB32, LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 7.5kW@400V. It provides full protection to motors with a rated current Ir 4.5-18A (Ir adjustable), overload tripping class 10, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
