C60 UL/CSA/IEC-A9XPCM04

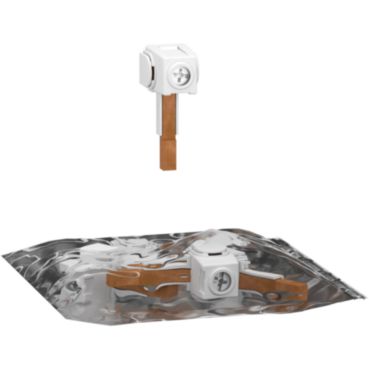

Set of 4 connectors 100A monoconnect for 3P+N comb busbar
Product Specifications
Part Number: A9XPCM04
Base Unit of Measurement: PCE
Length: 6.1 cm
Gross Weight: 64 g
ETIM-6.0: EC002498


Product Description

This Acti 9 Linergy FH monoconnect connector for Acti 9 iC60 and Acti 9 iK60 facilitates comb busbar power supply. It is a set of 4 devices. The Type of electric connection is PIN. The pin cross section is 16mm2. The cross section of the cable connector is 35mm2. The tightening torque is 4N.m. The color of the device is white RAL9003. The pollution degree is 3. It complies with IEC 60947-7-1 and IEC 61439-2 standards.
