Clario / Librio / Prodis : iDPN, C40, DT40-A9N26929

Acti 9 – Auxiliary contact OC plus 1 SD and OF ac dc
Product Specifications
Part Number: A9N26929
Base Unit of Measurement: PCE
Length: 9.2 cm
Gross Weight: 46 g
ETIM-6.0: EC001286
Product Description

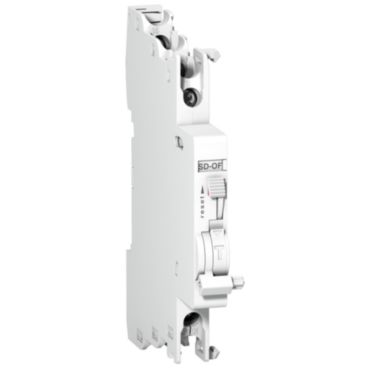

This Acti 9 OF+SD/OF electric auxiliary is a double open/closed or fault indicator contact. It is dedicated to Acti 9 C120, C60H-DC, DPN N Vigi. It comes with 1 changeover contact indicating the open or closed position (OF). It provides a remote position open/close and/or fault tripping indication of the associated device. It is a two-in-one product. The choice of OF+SD or OF+OF contact is made via the selector switch on front face. The width in 9mm pitches is 1. The Ue rated operational voltage is 24VAC to 415VAC or 24VDC to 130VDC. The operating frequency is 50Hz or 60Hz. The Ie rated operational current is 6A under 24VDC, 2A under 48VDC, 1.5A under 60VDC, 1A under 130VDC. The Ie rated operational current is 6A under 24VAC to 240VAC, 3A under 415VAC. There is a mechanical state indicator and a test function button on the front face. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with IEC/EN 60947-5-1 standard and EN 62019-2 standard only for C120.
