Compact NSX <630-LV430641

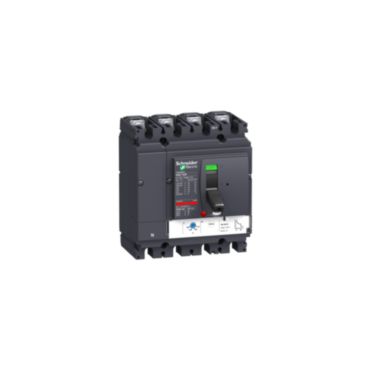

circuit breaker Compact NSX160F – TMD – 125 A – 4 poles 3d
Product Specifications
Part Number: LV430641
Base Unit of Measurement: PCE
Length: 19 cm
Gross Weight: 2.44 kg
ETIM-6.0: EC000228

Product Description

This Compact NSX160F is a complete 4P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds a 125A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an adjustable thermal overload protection and a fixed magnetic protection. This 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX160F is part of Schneider Electric EcoStruxure Power architecture.
