Compact NSX <630-LV433934

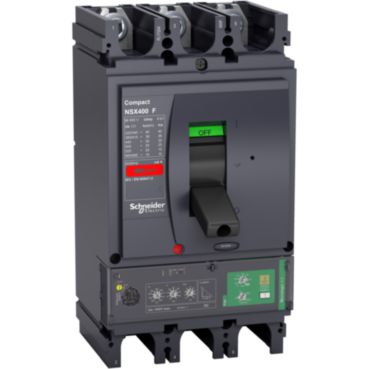

circuit breaker Compact NSX400F, 36 kA at 415 VAC, Micrologic 4.3 Vigi trip unit 400 A, 3 poles 3d
Product Specifications
Part Number: LV433934
Base Unit of Measurement: PCE
Length: 29 cm
Gross Weight: 5.81 kg
ETIM-6.0: EC000228


Product Description

This Compact NSX400F is a complete 3P 3d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz. The operational voltage is 440VAC 50/60Hz. This product embeds a 400A rating electronic Micrologic 4.3 Vigi trip unit, with an integrated adjustable earth-leakage protection. Micrologic 4.3 Vigi provides also adjustable long time and short time protections, and a fixed instantaneous protection. This 3 poles version (140mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX400F is part of Schneider Electric EcoStruxure Power architecture.
