Compact NSX <630-LV432696

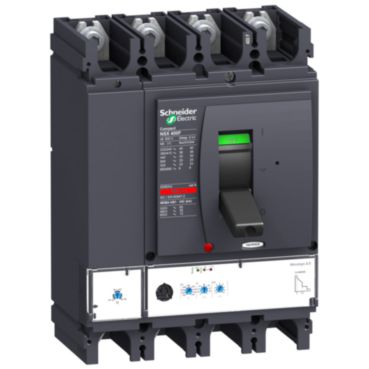

circuit breaker Compact NSX400H – Micrologic 2.3 – 400 A – 4 poles 4d
Product Specifications
Part Number: LV432696
Base Unit of Measurement: PCE
Length: 29 cm
Gross Weight: 7.403 kg
ETIM-6.0: EC000228

Product Description

This Compact NSX400H is a complete 4P 4d fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 70kA rms at 415VAC 50/60Hz. The operational voltage is 690VAC 50/60Hz. This product embeds an electronic Micrologic 2.3 trip unit, with 400A rating. Micrologic 2.3 trip unit provides adjustable long time and short time protections, and a fixed instantaneous protection. This 4 poles version (185mm x 255mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications. Compact NSX400H is part of Schneider Electric EcoStruxure Power architecture.
