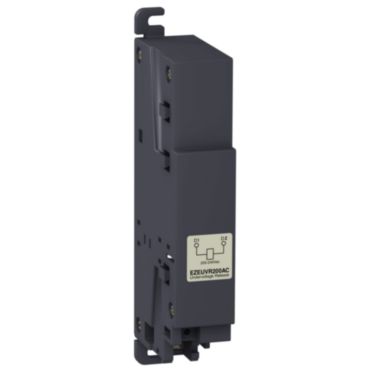

EasyPact EZC-EZEUVR200AC

undervoltage release MN – 200..40 V AC – for EZC250, EZCV250
Product Specifications
Part Number: EZEUVR200AC
Base Unit of Measurement: PCE
Length: 1.75 dm
Gross Weight: 0.2 kg
ETIM-6.0: EC001022


Product Description

The under voltage release(MN) as the part of remote tripping is used for EasyPact EZC(V)250 circuit breakers. This MN is working at 200…240VAC voltage(Un), 50/60Hz. Tripping threshold is between 0.35 and 0.7times the related voltage. This release trips the circuit breaker when control voltage drops below a tripping threshold. Circuit breaker closing is possible only if the voltage exceeds 0.85 times the related voltage. This auxiliarily can be installed with a rotary handle.
