Interpact INS/INV-28900

switch-disconnector Compact INS40 – 3 poles – 40 A
Product Specifications
Part Number: 28900
Base Unit of Measurement: PCE
Length: 10 cm
Gross Weight: 601 g
ETIM-6.0: EC000216


Product Description

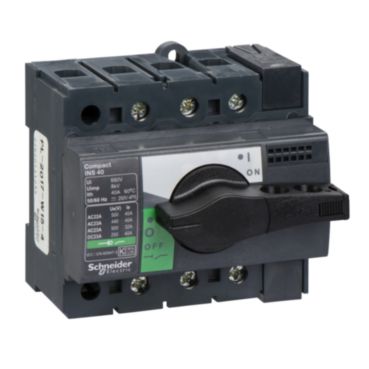

This Compact INS40 is a 3 poles non-automatic switch-disconnector with black rotary handle. It is suitable for isolation with positive contact indication, as defined by IEC 60947-1 and IEC60947-3 standards. The operational current is 40A at 415VAC in categories AC22A and AC23A. The rated voltage is 500VAC 50/60Hz or 250VDC. The black rotary handle is designed to offer easy operation and high performance in interruption of currents. Compact INS40 is a class II insulation level front-face device as per IEC 60664 standard.
