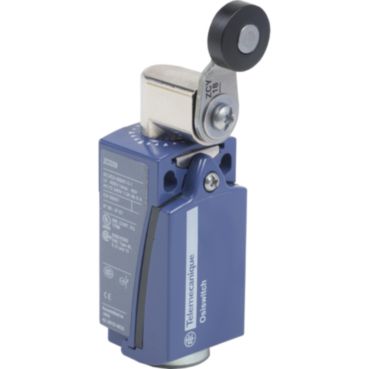

OsiSense XC Standard-XCKD2118P16

limit switch XCKD – thermoplastic roller lever – 1NC+1NO – snap – M16
Product Specifications
Part Number: XCKD2118P16
Base Unit of Measurement: PCE
Length: 13 cm
Gross Weight: 207 g
ETIM-6.0: EC000030

Product Description

This XCKD compact format (CENELEC EN 50047) limit switch has a thermoplastic roller lever with track 20/36mm and a Zamak body. This limit switch has a robust Zamak body and head, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is ideal for all industrial machines like packaging, materials handling, conveyors, machining, food and beverage. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947.-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards and is also RoHS compliant. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
