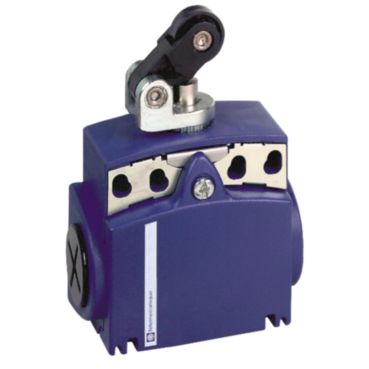

OsiSense XC Standard-XCKT2121P16

limit switch XCKT – th.plastic roller lever plung. Hor – 1NC+1NO – snap – M16
Product Specifications
Part Number: XCKT2121P16
Base Unit of Measurement: PCE
Length: 9.8 cm
Gross Weight: 102 g
ETIM-6.0: EC000030

Product Description

This XCKT compact format (CENELEC EN 50047) limit switch has a steel roller lever plunger with horizontal actuation and a plastic body. This limit switch has a double insulated Class II thermoplastic body, two electrical connection entries, a modular design allowing easier maintenance and a compact CENELEC EN50047 format. It is IP66 and IK04 impact resistant, making it ideal for heavy duty use in harsh conditions. It is fixed on the machine by its body, and has a typical 5 million cycles electrical durability in DC-13 utilization category. It complies with CCC, EN/IEC 60947-5-1, CSA C22.2 No.14, EN/IEC 60204-1, UL 508 standards. Compatible with the well distributed range of common XCK heads, allowing quick replacement in case of damage. Variable composition design allows late modifications on the switch, for example change of connection type or head.
