Osisense XS & XT-XS630B1PBM12

inductive sensor XS6 M30 – L74mm – brass – Sn15mm – 12..48VDC – M12
Product Specifications
Part Number: XS630B1PBM12
Base Unit of Measurement: PCE
Length: 9.6 cm
Gross Weight: 162 g
ETIM-6.0: EC002714


Product Description

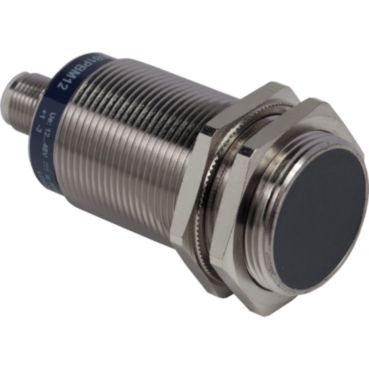

This XS cylindrical (M30 thread) inductive proximity sensor has a PPS sensing face and a nickel plated brass case. It has a supply voltage of 12V to 48V DC. This general purpose threaded cylindrical inductive proximity sensor is flush mountable and has an increased sensing range. It is mountable directly on a surface or bracket, thanks to its outer thread and twin nuts. Corrosion-resistant and non-magnetic nickel plated brass provides magnetic shielding to the sensor, better accuracy and immunity to magnetic disturbance. It has 4 LED viewports for easy sensor status viewing, setup and troubleshooting. IP65, IP67 and IP69K protection makes this product ready for the harshest environments. It can operate in very cold (-25°C) and hot environments (+70°C). It has a standard M12 connector, compatible with all existing market sensor cabling. It is CSA, UL certified.
