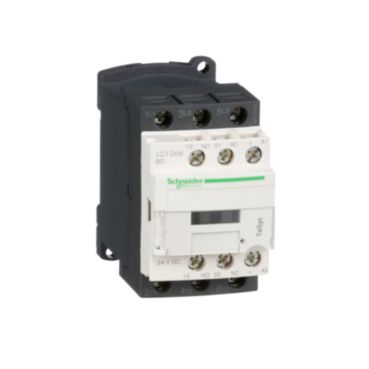

TeSys D-LC1D09BD

TeSys D contactor – 3P(3 NO) – AC-3 – <= 440 V 9 A – 24 V DC coil
Product Specifications
Part Number: LC1D09BD
Base Unit of Measurement: PCE
Length: 11.2 cm
Gross Weight: 532 g
ETIM-6.0: EC000066


Product Description

TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
