TeSys GV2-GV2L14

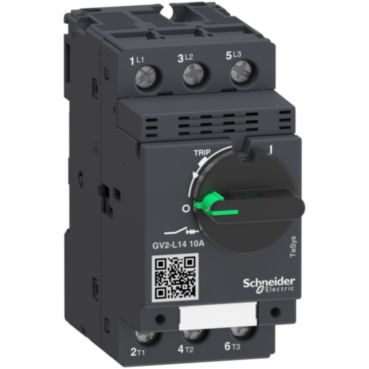

TeSys GV2 – Circuit breaker – magnetic – 10 A – screw clamp terminals
Product Specifications
Part Number: GV2L14
Base Unit of Measurement: PCE
Length: 9.8 cm
Gross Weight: 323 g
ETIM-6.0: EC000074


Product Description

TeSys GV motor circuit breaker, 3 poles (3P), 10A/690V, for 3-phase motor applications 3-4kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by rotary handle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD14 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
